MININGLAND

EXPERTS IN AGGREGATES AND MINERAL PROCESSING

Miningland has acquired decades of experience in research, manufacturing, installing, and commissioning equipment for processing aggregates and minerals. Miningland was established to become a global leader in engineering capability and provide the best technical solutions.

Miningland is committed to quality, efficiency, service, safety and respect for the environment. We can make significant progress in these areas while providing the best equipment for our customers.
Miningland’s objective is to build quality & reliable mineral processing equipment for aggregates and recycling operations.

A selection of the main components are detailed below. For the full Miningland range please download the product catalogue at the bottom of the page. Or Call us on – 0141 646 2066 or Email – sales@cormac.co.uk

For correct dosage of products with fine and medium grain sizes,

Miningland engineering has developed a complete range of Belt Feeders.
These are unbeatable for feeding materials with a high content of fines, even in small quantities, wet and sticky materials can be dosed without problems.

Can be equipped with variable speed drives for perfect control of the feed flow.

Description	Size
Production	150-250 T/h
Belt width	650mm
Length between the drums	1,350 mm
Diameter of the drums	320 mm
Power	2.2 Kw

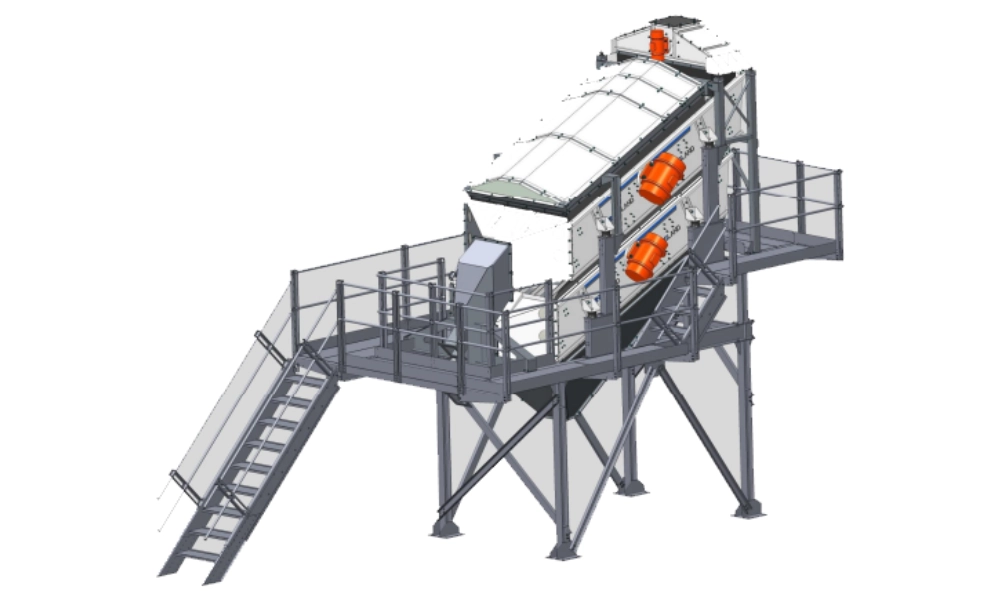

3.1. METAL MESH (INOX)

Equipment of supports and fixing of polyurethane for placement of meshes, and INOX meshes for cuts at 2,5 and 5 mm.

Description	Size
Model	VSF-72-II
Length of screening	4 m
Wide screening	1,89 m
Screening surface	7,56 m sq
Slope	25 degrees
Power	2 x 7,5 Kw

The dynamic air classifier technology is based on making a flow of air pass through a curtain of sand. By regulating the flow and speed of the air passing through, the smaller particles of the material to classify will be dragged along with the air (usually the fraction lower than 60-100μm).

Built in carbon steel S-275-JR, reinforced and ribbed, removable in transport measures by means of electro-galvanized quality 8.8 screws. They can be equipped with speed variation to adjust the flow rate.
